We offer a line of portable fiber laser systems for laser marking, engraving, drilling, cutting and micro-processing applications. We use 10W, 20W or 30 W Q-switched or CW fiber lasers made by IPG Photonics. All systems use brand name high quality US made scanhead and laser controller. All systems are made in USA and will be shipped from USA.

Our portable fiber laser system features an integrated "handheld" control module which includes all the laser and scanner control, power supplies, fiber laser, USB connection and external control I/O.

The system also features a special operator control box with lasing "Start", "Stop" and "Emergency Stop" buttons for ease of use at your production site.

Our open frame system enables customer to engrave or mark very large piece of parts without any limitation.

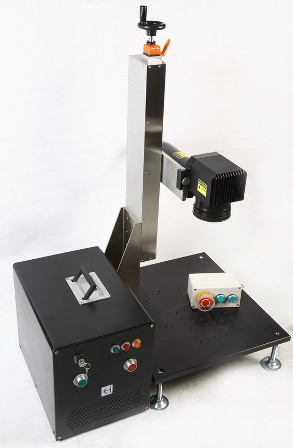

Our Z axis (optional) with indicator can give you precise the focus every time for the same part.

Fiber laser MTBF is > 50,000 hours.

We offfer free training during installation at your site. We proudly offers lifetime technical support guarrantee.

Special promotions are offered now. Click here for all the details.

Contact us now to order this fiber laser or if you are interested in becoming our reseller in your country.

OFB-20 Specification

Standard Configurations:

Mode of operation:              Q-switched

Nominal output power:                  20W

Pulse rep rate:                   20 - 80 KHz

Optical isolator to block reflection:  Yes

Red pointing beam:                 Included

Laser beam quality M2:               < 1.4

F-theta lens:                           163 mm

Full marking field:           112 x 112 mm

Electrical:          1 phase, 110/240VAC, 50/60Hz

Power consumption:               < 300 W

Operating temperature:            0 - 35 C

Humidity (non-condensing):    10 - 95%

Dimension of control module: W: 280 mm x H: 330 mm x D: 450 mm

Weight of control module:         < 20 kg

Warm up time:                    < 1 minute

Cooling:                         forced air only

Safety level:                           Class IV

Options:

Laser power:                       10W, 30W

F-theta lens:   100mm, 254mm, 330mm

Mode of operation:                        CW

Class I enclosure:                         Yes

Manual Z axis with indicator:          Yes

XY table:                                       Yes

Rotary (4th axis):                           Yes
